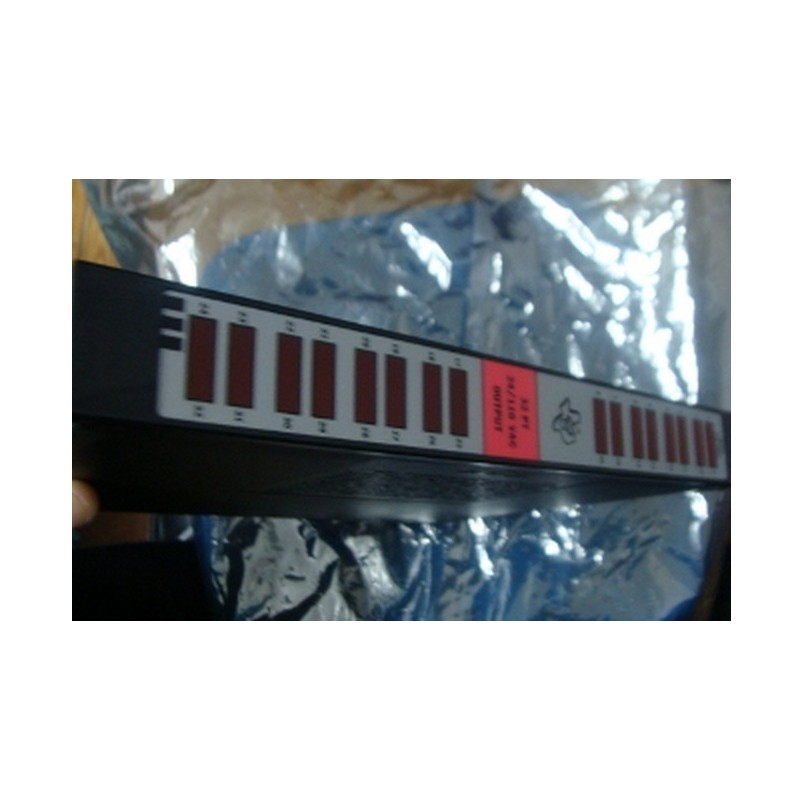

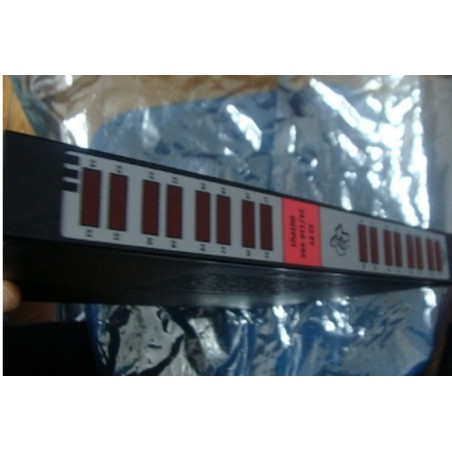

Texas Instruments 500-5056 AC Output Module
The Texas Instruments 500-5056 is a 32-point high-density AC output module designed for the Series 500 Programmable Logic Controller (PLC) systems. It facilitates the control of up to 32 discrete AC output devices, making it suitable for complex industrial automation applications.
Security policy
We offer many payment options to make your purchasing experience secure, easy and flexible.
Delivery policy
In-stock products: Same day shipping Mon. through Fri. by 6:00 pm EST.
Return policy
90-days money back guarantee
Description
The 500-5056 module provides 32 output channels, each capable of handling AC voltages ranging from 20 to 132 VAC at 50/60 Hz. It is engineered to interface seamlessly with Texas Instruments Series 500 PLCs, enabling efficient control of various output devices such as actuators, indicators, and relays. The module's high-density design allows for space-efficient installations in control cabinets.
Features:

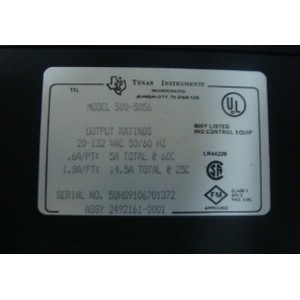

- Number of Outputs: 32 channels
- Output Voltage Range: 20-132 VAC
- Frequency: 50/60 Hz
- Output Current per Channel: 0.6 A at 60°C; 1.8 A at 25°C
- Total Output Current: 5 A total at 60°C; 14.5 A total at 25°C
- Connector Type: Screw terminals for secure wiring connections
- Compatibility: Designed for Texas Instruments Series 500 PLC systems
Applications:
- Industrial Automation: Controls multiple AC-powered devices in manufacturing and processing plants.
- Building Management Systems: Manages lighting, HVAC, and other building utilities.
- Material Handling: Operates conveyors, sorters, and other equipment in logistics facilities.
Product Details
500-5056
1 Item
New
Specific References
- MPN
- 500-5056
The Texas Instruments 500-5056 is a 32-point high-density AC output module designed for the Series 500 Programmable Logic Controller (PLC) systems. It facilitates the control of up to 32 discrete AC output devices, making it suitable for complex industrial automation applications.
