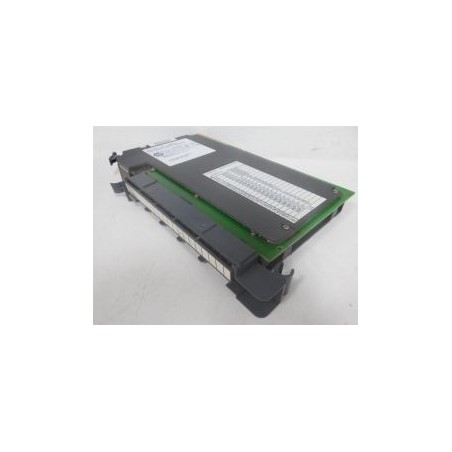

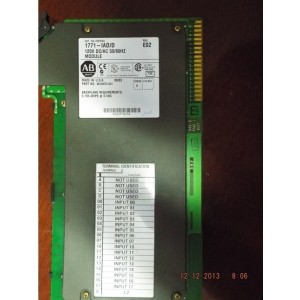

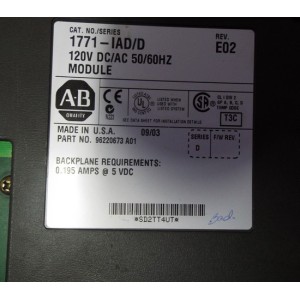

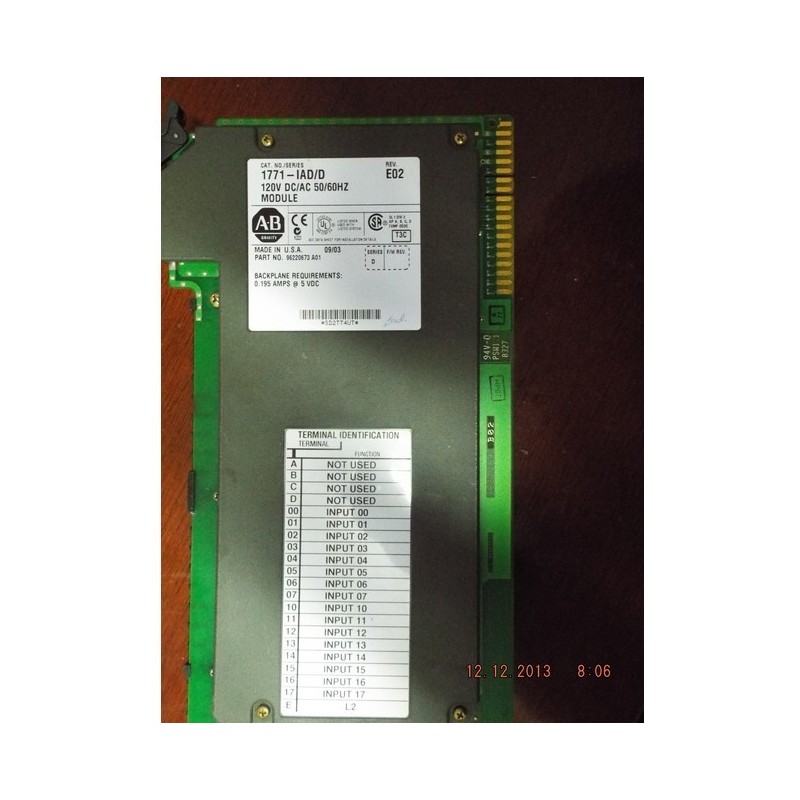

Allen-Bradley 1771-IAD SER D Input Module

1771-IAD SER D

The Allen-Bradley 1771-IAD Series D is a 16-point AC/DC input module designed for the 1771 I/O chassis, facilitating the integration of various input devices into PLC-5 systems.

$45.00
Tax excluded
Quantity
Last items in stock
1 Item

Ask about the product on WhatsApp
  Security policy

We offer many payment options to make your purchasing experience secure, easy and flexible.

  Delivery policy

In-stock products: Same day shipping Mon. through Fri. by 6:00 pm EST.

  Return policy

90-days money back guarantee

Description

This module accepts 16 inputs, accommodating both AC (120V) and DC (125V) signals. It converts these signals into appropriate logic levels for processing by the PLC. Typical input devices include proximity switches, limit switches, selector switches, float switches, and pushbutton switches. The module features a green "Module Active" indicator and 16 red status indicators for each input point, providing clear visual status of input conditions. It is compatible with 1771 Series B or later I/O chassis, as well as 1771-AM1 and -AM2 chassis.

Features:

  • 16 input points
  • Nominal input voltage: 120V AC at 50/60Hz; 125V DC
  • Nominal input current: 9.9mA at 120V AC (60Hz); 8.7mA at 120V AC (50Hz); 2.56mA at 125V DC
  • On-state voltage range: 79V to 138V AC or DC
  • Minimum on-state current: 5.95mA at 79V AC (60Hz); 1.5mA at 79V DC
  • Maximum off-state voltage: 43V AC or DC
  • Maximum off-state current: 3.0mA at 43V AC (60Hz); 0.8mA at 43V DC
  • Input filtering to limit voltage transients
  • Opto-electrical isolation for protection against electrical transients
  • Compatible with 2-slot, 1-slot, or 1/2-slot addressing modes
  • Requires 75mA from the I/O chassis backplane power supply
Product Details
1771-IAD SER D
1 Item
New

Specific References

MPN
1771-IAD
