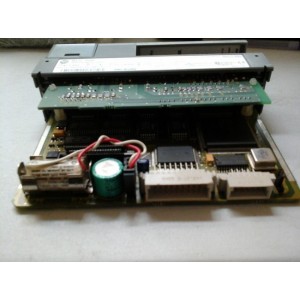

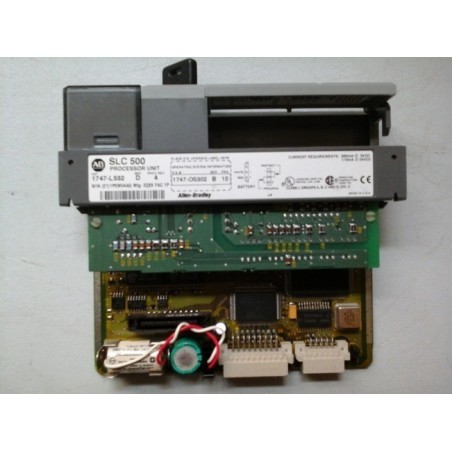

Allen-Bradley 1747-L532 SER D Processor Module

The Allen-Bradley 1747-L532 Series D is a programmable logic controller (PLC) processor module from the SLC 500 family. It features 16K words of user memory, with 12K words allocated for data/program storage and 4K words dedicated to data only. The processor supports up to 4096 input and 4096 output points, along with 480 local analog I/O points, making it suitable for a wide range of industrial control tasks. It includes built-in communication ports: one RS-232 port and one DH-485 port, facilitating seamless integration with various devices and networks. The 1747-L532 operates with a program scan time of approximately 1 millisecond per K-word and an I/O scan time of 0.225 milliseconds, ensuring efficient processing. It is designed to function within an ambient temperature range of 0 to 60 degrees Celsius and can withstand operating shocks up to 30G. The module is compatible with standard battery-backed RAM and supports flash backup memory for enhanced data retention.

Features:

• Memory: 16K words (12K words for data/program, 4K words for data)
• I/O Capacity: Supports up to 4096 inputs, 4096 outputs, and 480 local analog I/O points
• Communication Ports: RS-232 and DH-485
• Program Scan Time: Approximately 1 ms per K-word
• I/O Scan Time: 0.225 milliseconds
• Operating Temperature: 0 to 60 degrees Celsius
• Shock Resistance: Withstands up to 30G operating shock
• Backup Memory: Standard battery-backed RAM; supports flash backup memory
