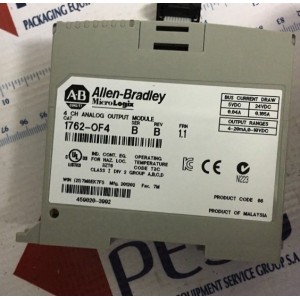

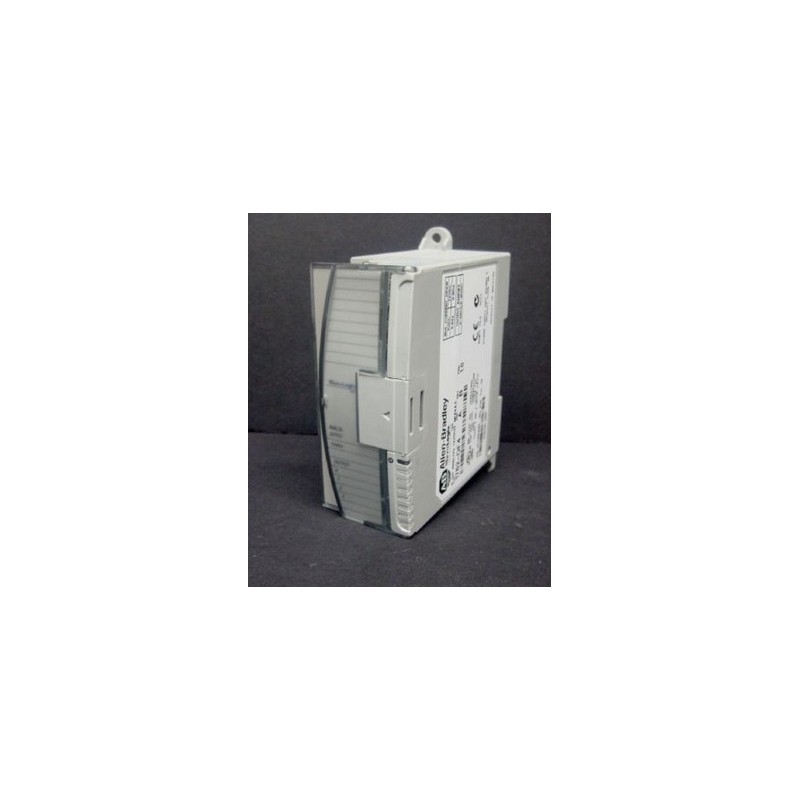

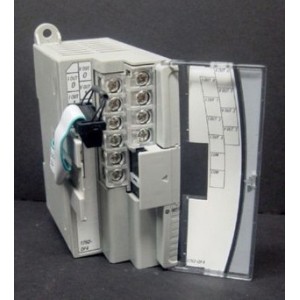

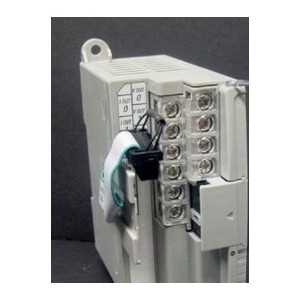

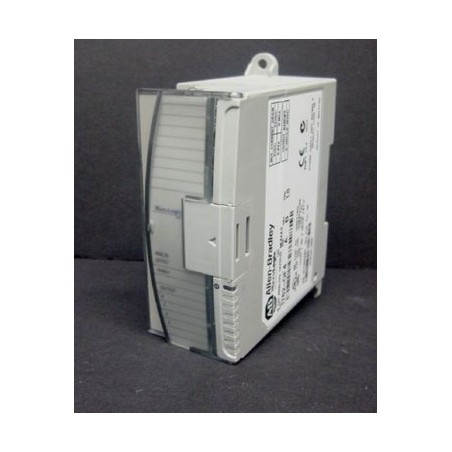

Allen-Bradley 1762-OF4 SER B Output Module
The Allen-Bradley 1762-OF4 Series B is a 4-channel analog output module designed for MicroLogix 1100, 1200, and 1400 programmable logic controllers (PLCs), providing precise voltage and current outputs for industrial automation applications.
Security policy
We offer many payment options to make your purchasing experience secure, easy and flexible.
Delivery policy
In-stock products: Same day shipping Mon. through Fri. by 6:00 pm EST.
Return policy
90-days money back guarantee
Description
This module offers four single-ended analog outputs, configurable for either voltage (0 to 10V DC) or current (4 to 20 mA) signals. It supports 12-bit resolution, ensuring accurate signal representation for control processes. The 1762-OF4 is engineered for seamless integration with MicroLogix PLCs, enhancing system flexibility and scalability. Its compact design allows for efficient DIN rail or panel mounting, optimizing space within control panels. The module is suitable for applications requiring precise analog control, such as variable speed drives, proportional valves, and other actuators.
Features:
- Output Channels: 4 single-ended analog outputs
- Output Signal Ranges: 0 to 10V DC (voltage); 4 to 20 mA (current)
- Resolution: 12-bit
- Conversion Type: R-2R Ladder Voltage Switching D/A converter
- Accuracy: ±0.5% full scale
- Update Time: 2.5 ms per channel
- Power Supply Voltage: 24V DC
- Current Consumption: 80 mA at 5V DC; 170 mA at 24V DC
- Operating Temperature: -20°C to 65°C (-4°F to 149°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Mounting: DIN rail or panel
- Compatibility: MicroLogix 1100, 1200, 1400 PLCs
Product Details
1762-OF4 SER B
New
Specific References
- MPN
- 1762-OF4
