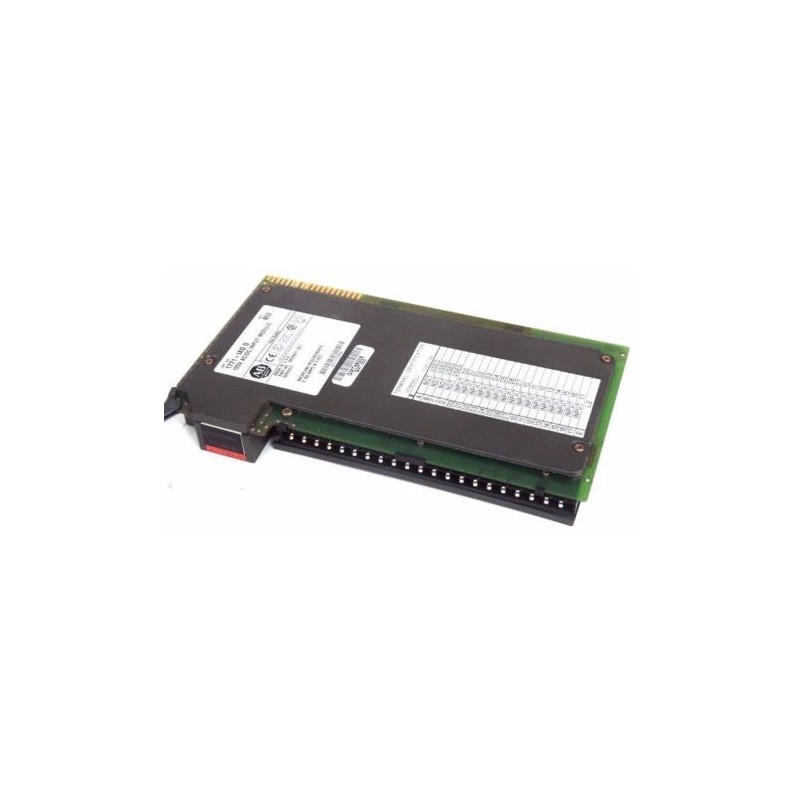

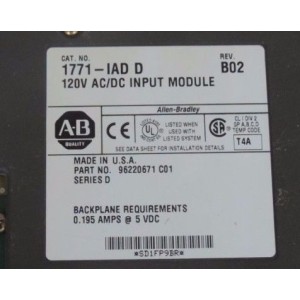

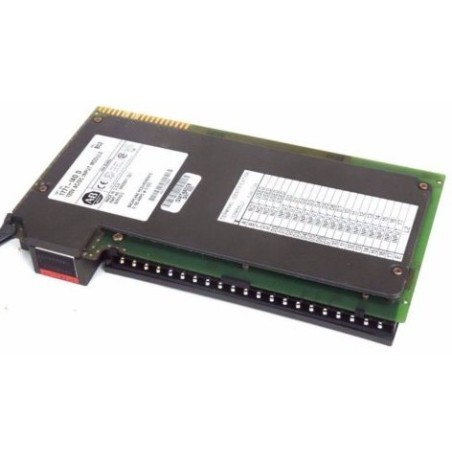

Allen-Bradley 1771-IAD SER D Input Module

1771-IAD SER D

The Allen-Bradley 1771-IAD Series D is a 16-point digital input module designed to interface 120V AC/DC signals from field devices to the PLC-5 system, facilitating the integration of various input devices into industrial automation systems.

$45.00
Tax excluded
Quantity
Last items in stock
1 Item

Ask about the product on WhatsApp
Make an Offer

Your Offer is sent.

Your Offer is accepted, please check your inbox.

  • Use dot instead of comma
  •     *Required Fields

Loading

  Security policy

We offer many payment options to make your purchasing experience secure, easy and flexible.

  Delivery policy

In-stock products: Same day shipping Mon. through Fri. by 6:00 pm EST.

  Return policy

90-days money back guarantee

Description

This module converts AC or DC signals from devices such as proximity switches, limit switches, and pushbuttons into logic levels compatible with the PLC-5 system. It features input filtering to mitigate voltage transients caused by contact bounce or electrical noise, ensuring reliable signal processing. Each of the 16 input points is equipped with a status indicator LED for easy monitoring and troubleshooting. The module is compatible with 1771 I/O chassis, excluding the 1771-A1, 1771-A2, and 1771-A4 chassis. It requires a 10-terminal field wiring arm (cat. no. 1771-WA) for connections.

Features:

  • Number of Inputs: 16
  • Input Voltage Range: 79 to 138V AC/DC
  • Nominal Input Voltage: 120V AC/DC
  • Input Current: Approximately 10 mA per input at 120V
  • Input Filtering Delay: Selectable 5 ms or 20 ms
  • Status Indicators: 16 LEDs (one per input)
  • Backplane Current Consumption: 195 mA
  • Operating Temperature Range: 0°C to 60°C (32°F to 140°F)
  • Compatibility: Compatible with 1771 I/O chassis, except 1771-A1, 1771-A2, and 1771-A4
Product Details
1771-IAD SER D
1 Item
New

Specific References

MPN
1771-IAD
