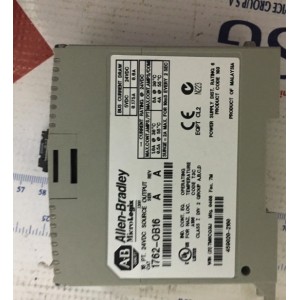

Allen-Bradley 1762-OB16 Series A 16-Point 24V DC Sourcing Output Module
  • Allen-Bradley 1762-OB16 Series A 16-Point 24V DC Sourcing Output Module
  • Allen-Bradley 1762-OB16 Series A 16-Point 24V DC Sourcing Output Module

Allen-Bradley 1762-OB16 SER A Output Module

1762-OB16 SER A

The Allen-Bradley 1762-OB16 Series A is a 16-point 24V DC sourcing digital output module designed for use with MicroLogix 1100, 1200, and 1400 programmable logic controllers (PLCs). It facilitates the expansion of output capabilities in industrial automation systems.

$75.00
Tax excluded
Quantity
Last items in stock
2 Items

Ask about the product on WhatsApp
Make an Offer

Your Offer is sent.

Your Offer is accepted, please check your inbox.

  • Use dot instead of comma
  •     *Required Fields

Loading

  Security policy

We offer many payment options to make your purchasing experience secure, easy and flexible.

  Delivery policy

In-stock products: Same day shipping Mon. through Fri. by 6:00 pm EST.

  Return policy

90-days money back guarantee

Description

This solid-state output module provides 16 sourcing outputs, delivering an output voltage range of 20.4 to 26.4V DC. Each output point supports a continuous current rating of 0.5A at 55°C (131°F) and 1.0A at 30°C (86°F), with a total module current capacity of 4.0A at 55°C and 8.0A at 30°C. The module features a signal delay time of 0.1 ms for turning on and 1.0 ms for turning off, ensuring prompt response in control applications. Designed for DIN rail mounting, the 1762-OB16 allows for straightforward installation and integration into existing control systems. It is suitable for energizing discrete actuating devices such as solenoids, pilot lamps, and relay coils.

Features:

  • Output Channels: 16 sourcing outputs
  • Output Voltage Range: 20.4 to 26.4V DC
  • Continuous Current per Point: 0.5A at 55°C; 1.0A at 30°C
  • Total Module Current: 4.0A at 55°C; 8.0A at 30°C
  • Signal Delay Time: 0.1 ms (on); 1.0 ms (off)
  • Mounting: DIN rail
  • Compatibility: MicroLogix 1100, 1200, 1400 PLCs
  • Surge Current Rating: 2.0A (repeatability: once every 2 s at 55°C, once every second at 30°C for 10 ms)
Product Details
1762-OB16 SER A
2 Items
New

Specific References

MPN
1762-OB16
