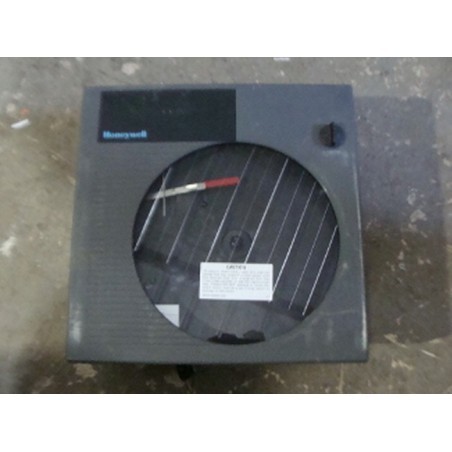

Honeywell DR4300 Circular Chart Recorder

The DR4300 Circular Chart Recorder utilizes preprinted 10-inch (250 mm) charts and fiber-tip pens to provide dependable analog traces of process variables. It accepts inputs from a variety of sensors and transmitters, including thermocouples, RTDs, mA, mV, or voltage inputs, making it versatile for different monitoring needs. The recorder is available with or without a digital display, allowing users to view process variables and configure settings easily. Its rugged construction, featuring a structural foam case and heavy-duty plastic door, ensures durability in industrial environments. The DR4300 also supports optional features such as PID control, alarming, and Modbus™ communications, enhancing its functionality for complex process requirements.

Features:

• One- or two-pen recording capability
• 10-inch (250 mm) preprinted circular charts
• Accepts inputs from thermocouples, RTDs, mA, mV, or voltage
• Optional digital display for process monitoring and configuration
• Optional PID control and alarming functions
• Modbus™ communication option
• Rugged construction with NEMA 3 or NEMA 4 front face protection
• Typical accuracy of 0.50%; field calibration can improve accuracy to 0.2%
