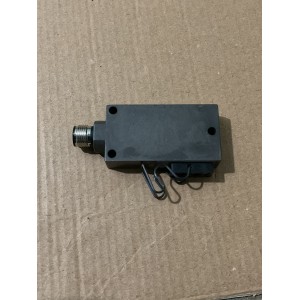

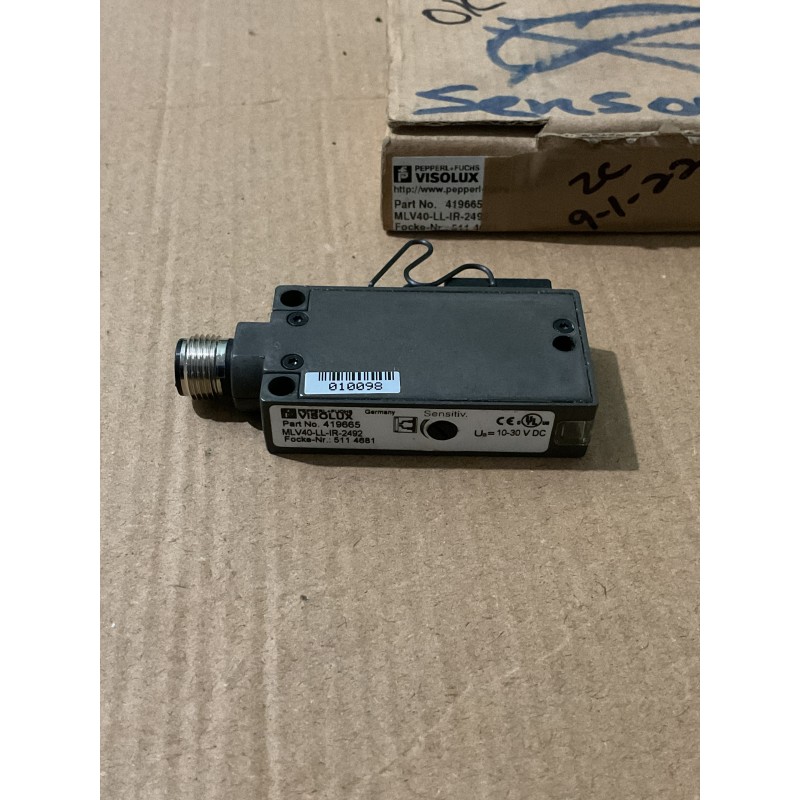

Pepperl+Fuchs MLV40-LL-IR-2492 Sensor

The MLV40-LL-IR-2492 fiber optic amplifier from Pepperl+Fuchs is engineered to enhance detection capabilities in challenging industrial settings. Its durable aluminum housing with a premium Delta Seal coating ensures longevity and resistance to harsh conditions. The device features continuously adjustable sensitivity, allowing for precise tuning to specific application requirements. The quick-tightening shutter mechanism enables easy and secure installation of fiber optic cables, minimizing setup time. Operating with modulated infrared light at 880 nm, the amplifier provides reliable detection of objects, even in environments with varying lighting conditions. It supports a wide operating voltage range of 10 to 30 V DC and offers complementary PNP outputs, making it versatile for integration into various control systems.

Features:

• Light Source: Infrared LED, 880 nm
• Sensitivity Adjustment: Continuously adjustable
• Outputs: 2 PNP, complementary, short-circuit and reverse polarity protected
• Switching Frequency: 1000 Hz
• Response Time: 0.5 ms
• Operating Voltage: 10 to 30 V DC
• Current Consumption: ≤ 40 mA (no load)
• Housing Material: Aluminum with Delta Seal coating
• Protection Class: IP67
• Operating Temperature: -20 to +60 °C (-4 to +140 °F)
• Connection: 4-pin M12 connector
• Dimensions: 56.5 mm (H) x 31 mm (W) x 13.6 mm (D)
• Weight: Approximately 50 g
• Approvals: CE, cULus
