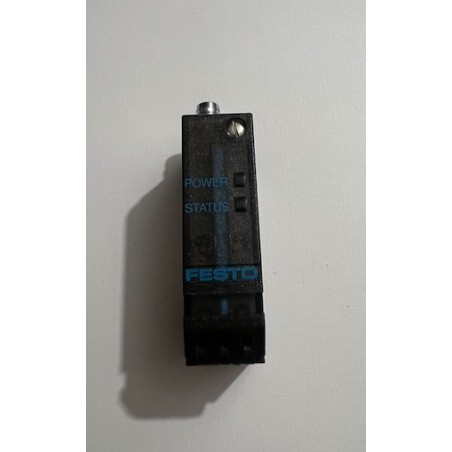

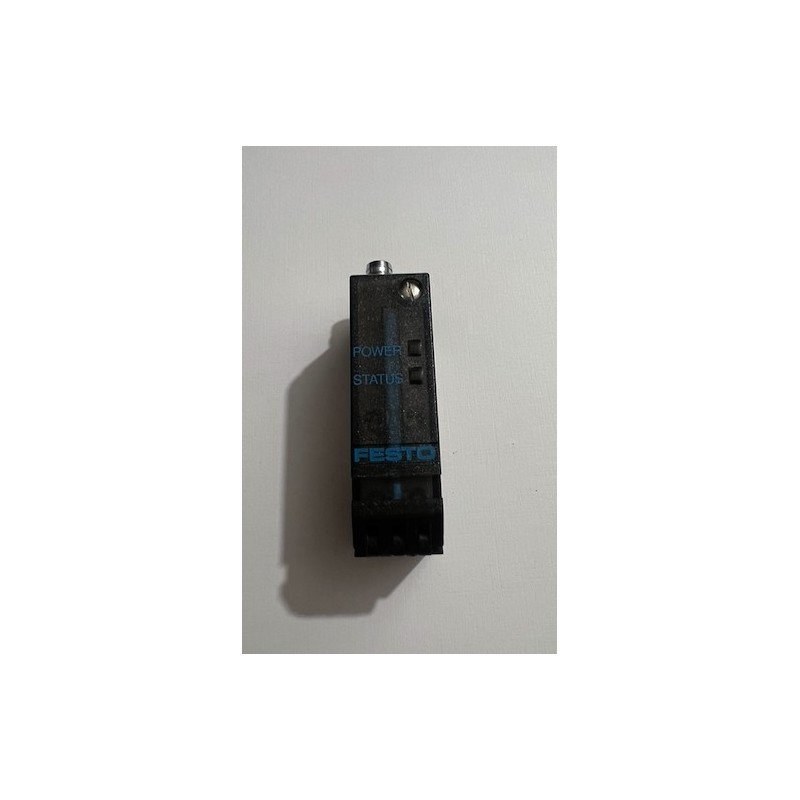

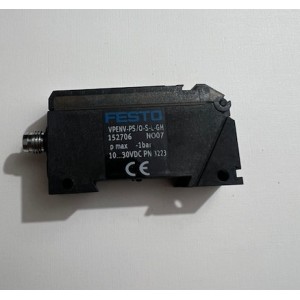

The Festo VPENV-PS/O-S-L-GH is an electronic differential pressure switch designed for monitoring vacuum conditions in pneumatic systems, offering precise control with adjustable hysteresis and robust construction.
Security policy
We offer many payment options to make your purchasing experience secure, easy and flexible.
Delivery policy
In-stock products: Same day shipping Mon. through Fri. by 6:00 pm EST.
The VPENV-PS/O-S-L-GH vacuum switch by Festo is engineered to measure differential pressure within a range of -1 to 0 bar, making it ideal for applications requiring accurate vacuum monitoring. It features an electronic differential pressure measurement method and provides a changeover switch function. The device operates with a supply voltage of 10 to 30 V DC and can handle a maximum output current of 130 mA. The hysteresis is adjustable between 0.025 and 0.5 bar, allowing for customizable switching sensitivity. Equipped with M5 pneumatic connections and an M8x1 4-pin electrical plug, it ensures straightforward integration into existing systems. The housing is made from PET-reinforced material, providing durability and compliance with IP65 protection standards. LED indicators display operational status, with a green LED for readiness and a yellow LED for switching status. The compact design supports versatile mounting options, including through-hole and top-hat rail installations.
Features:
Measured Variable: Differential pressure
Measurement Range: -1 to 0 bar
Switching Element Function: Changeover switch
Operating Voltage: 10 to 30 V DC
Max. Output Current: 130 mA
Hysteresis Adjustment Range: 0.025 to 0.5 bar
Pneumatic Connection: M5
Electrical Connection: M8x1 plug, 4-pin
Housing Material: PET-reinforced
Protection Class: IP65
Operating Temperature Range: 0 to 50°C
Mounting Type: Optional through-hole or top-hat rail
LED Indicators: Green for readiness, yellow for switching status
Product Details
VPENV-PS/O-S-L-GH
2 Items
Data sheet
Condition
New
Specific References
MPN
152706
