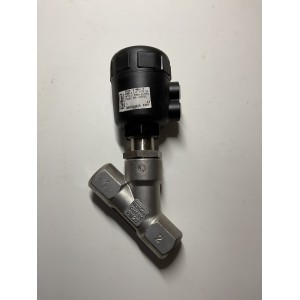

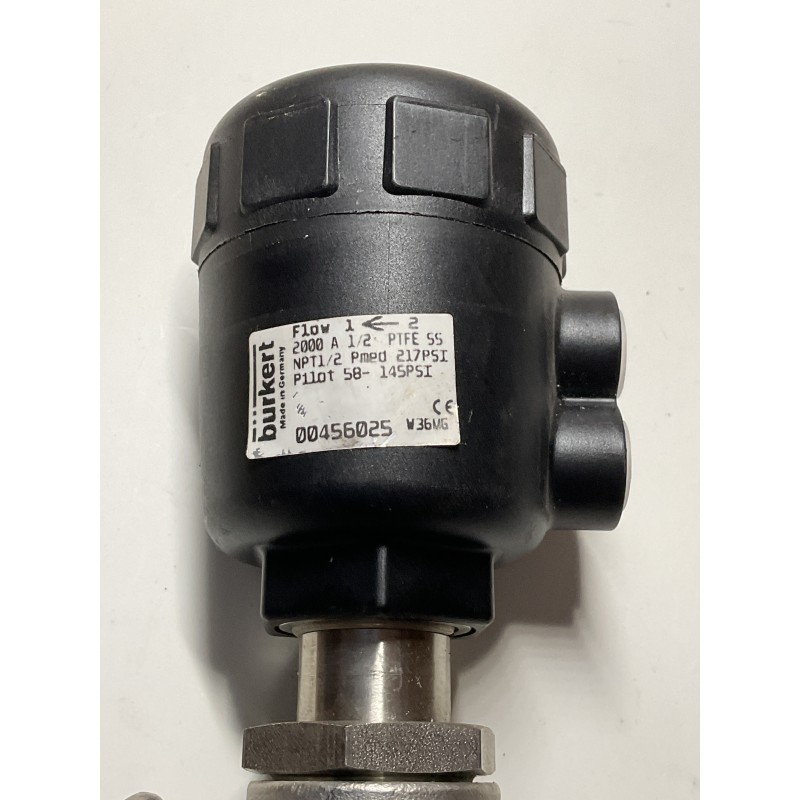

Bürkert Type 2000 Angle Seat Valve – Model 00456025

The Bürkert Type 2000 angle seat valve, specifically Model 00456025, is engineered for controlling various media, including gases, steam, and liquids, up to temperatures of 180°C. This pneumatically actuated valve features a stainless steel body with threaded port connections, ensuring robust performance and corrosion resistance. The actuator is available in materials suitable for different ambient temperatures, providing flexibility in diverse operating environments. The valve's design allows for high flow rates due to its virtually straight flow path, and it includes a self-adjusting packing gland for high sealing integrity. Maintenance-free and adaptable, the Type 2000 can be equipped with accessories for position indication, stroke limitation, or manual override.

Features:

• Pneumatically operated 2/2-way angle seat valve
• Stainless steel body with threaded port connections
• Suitable for media temperatures up to 180°C
• High flow rates with minimal pressure loss
• Self-adjusting packing gland for reliable sealing
• Maintenance-free design
• Compatible with various accessories for enhanced functionality
