MINARIK CORP PCM4

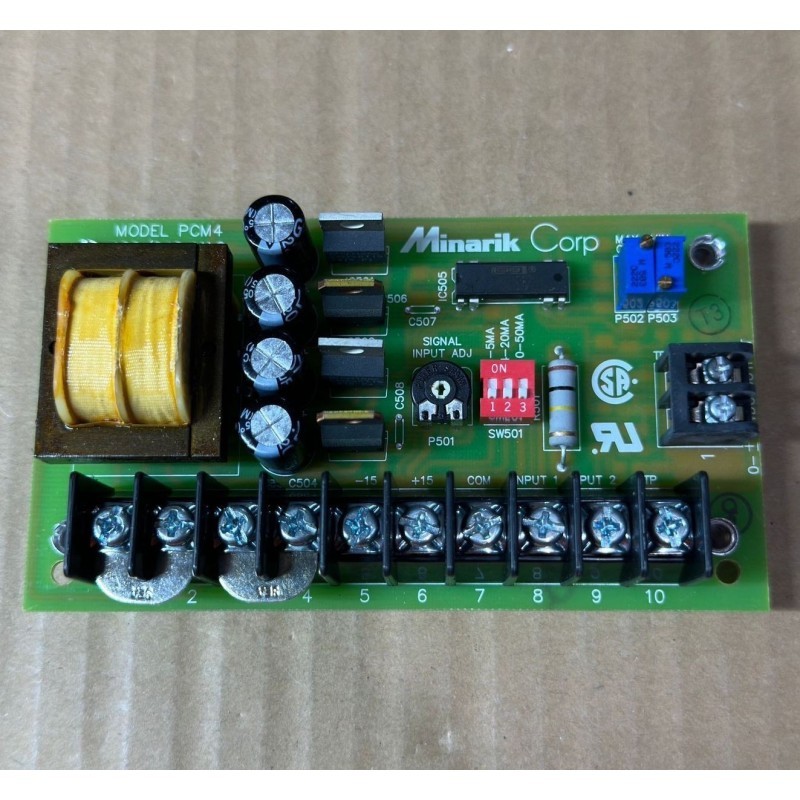

The PCM4 isolation card facilitates the control of motor drives using remote analog signals by providing electrical isolation, which is crucial for preventing ground loops and protecting both the control system and the drive. It accepts a wide range of input signals, including DC voltages from -250 to +250 VDC and current signals of 1-5 mA, 4-20 mA, or 10-50 mA. The PCM4 converts these inputs into an isolated output range of -10 to +10 VDC, compatible with various Minarik Drives. The device is powered by a single-phase 115 or 230 VAC supply and features high-resolution multi-turn trim pots for precise scaling of the output signal. Its compact design allows for easy integration into existing control systems, enhancing flexibility and safety in industrial automation applications.

Features:

• Accepts DC voltage inputs from -250 to +250 VDC

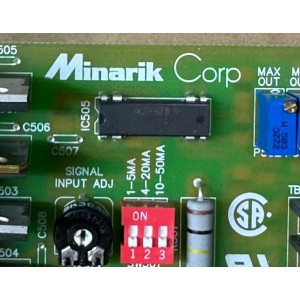

• Supports current inputs of 1-5 mA, 4-20 mA, or 10-50 mA
• Provides isolated output of -10 to +10 VDC

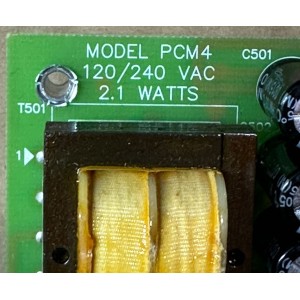

• Powered by 115 or 230 VAC single-phase supply
• High-resolution multi-turn trim pots for output scaling
• Compact standalone design for easy integration
