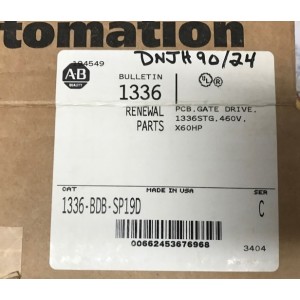

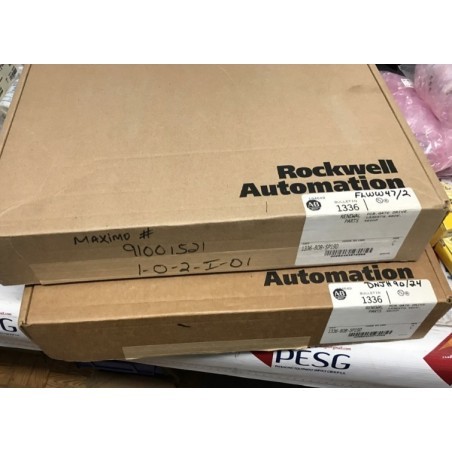

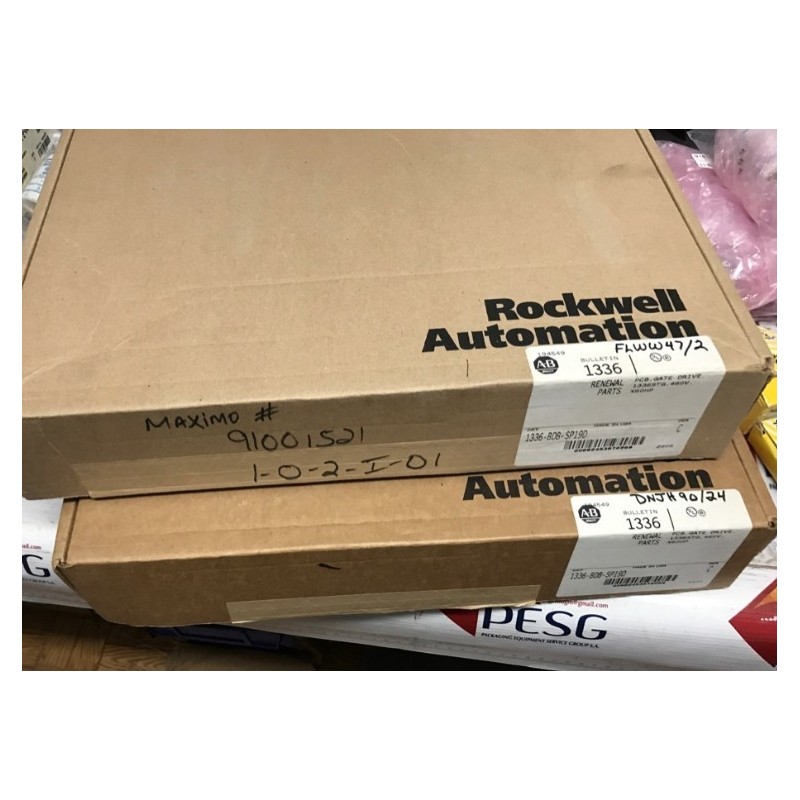

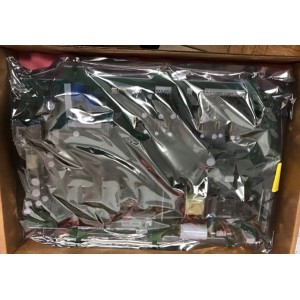

Allen-Bradley 1336-BDB-SP19D SER C Driver Board

1336-BDB-SP19D SER C

The Allen-Bradley 1336-BDB-SP19D Series C is a gate driver board designed for use with 1336 series AC drives, including the PLUS, PLUS II, FORCE, IMPACT, and REGEN models. It is specifically compatible with "C" frame drives rated up to 60 horsepower, facilitating efficient control of power transistors within the drive system.

$3,500.00
Tax excluded
Quantity
Last items in stock
2 Items

Ask about the product on WhatsApp
  Security policy

We offer many payment options to make your purchasing experience secure, easy and flexible.

  Delivery policy

In-stock products: Same day shipping Mon. through Fri. by 6:00 pm EST.

  Return policy

90-days money back guarantee

Description

The 1336-BDB-SP19D gate driver board plays a crucial role in the operation of Allen-Bradley's 1336 series adjustable frequency AC drives. It amplifies low-power control signals to the high-power levels necessary for switching Insulated Gate Bipolar Transistors (IGBTs), ensuring precise control of motor speed and torque. This board is designed for 460V AC drives up to 60 HP and is compatible with various models within the 1336 series. Proper installation and maintenance of the 1336-BDB-SP19D are essential for optimal drive performance and longevity.

Features:

  • Function: Amplifies control signals for IGBT switching.
  • Compatibility: Suitable for Allen-Bradley 1336 series AC drives (PLUS, PLUS II, FORCE, IMPACT, REGEN).
  • Drive Frame Size: Compatible with "C" frame drives up to 60 HP.
  • Voltage Rating: Designed for 460V AC systems.
Product Details
1336-BDB-SP19D SER C
2 Items
New

Specific References

MPN
1336-BDB-SP19D
