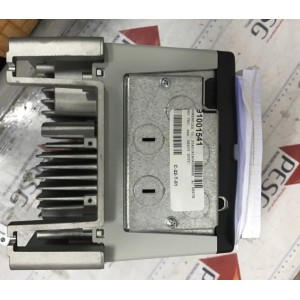

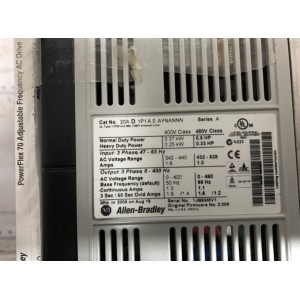

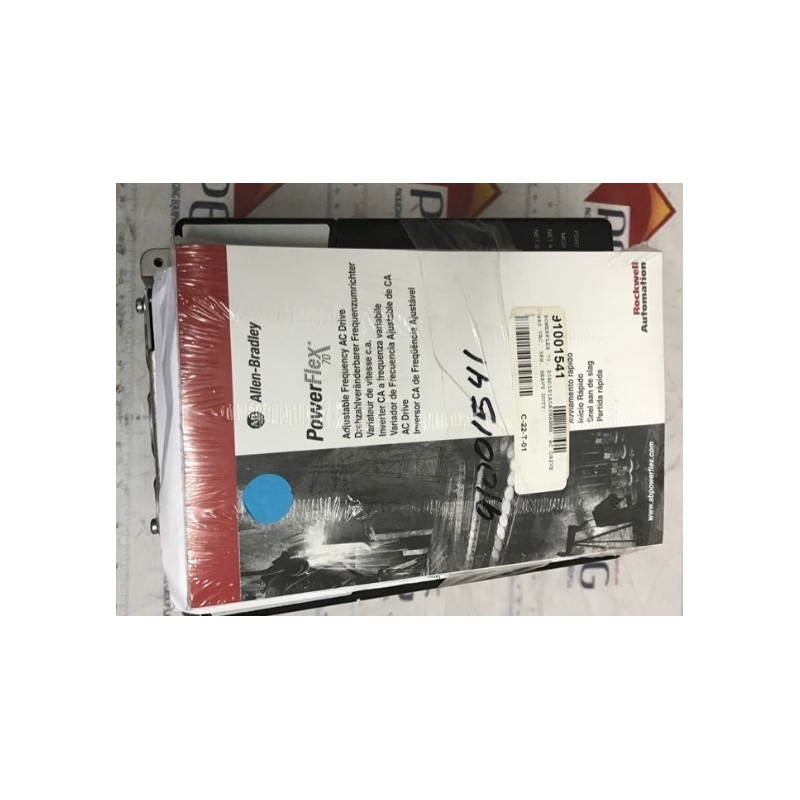

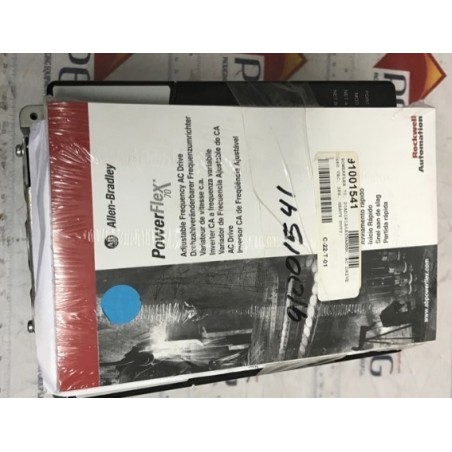

Allen-Bradley 20A D 1P1 A 0 AYNANNN SER A PowerFlex 70 AC Drive

The Allen-Bradley 20A-D1P1-A0-AYNANNN Series A is part of the PowerFlex 70 family of AC drives, offering efficient and flexible motor control solutions. This model operates at 480V AC with a current rating of 1.1 amps, suitable for applications requiring up to 0.5 HP (0.37 kW) in normal duty and 0.33 HP (0.25 kW) in heavy duty. It features a panel mount IP20/NEMA Type 1 enclosure, providing protection against dust and standard environmental conditions. The drive includes a brake IGBT but does not come with an internal brake resistor. It is equipped with standard control features and does not include a communication module or feedback option. The drive supports various control methods, including Volts per Hertz, Sensorless Vector, and Vector Control with FORCE Technology, making it versatile for a wide range of applications.

Features:

• Voltage Rating: 480V AC
• Current Rating: 1.1 amps
• Power Rating: 0.5 HP (0.37 kW) normal duty; 0.33 HP (0.25 kW) heavy duty
• Enclosure: Panel mount IP20/NEMA Type 1
• Brake IGBT: Installed
• Control Methods: Volts per Hertz, Sensorless Vector, Vector Control with FORCE Technology
• Communication Module: None
• Feedback Option: None
