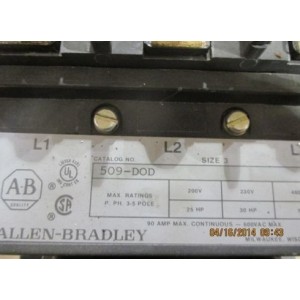

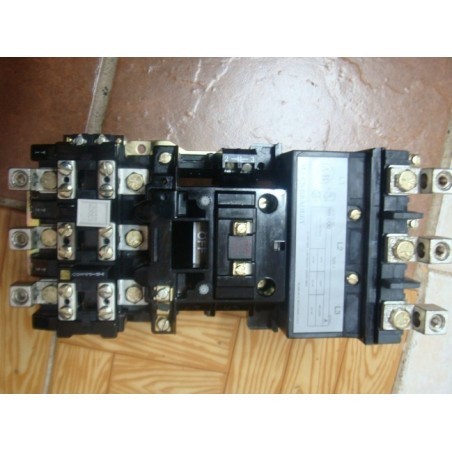

Allen-Bradley 509-DOD NEMA Starter

509-DOD

The Allen-Bradley 509-DOD is a NEMA Size 3 non-reversing full-voltage starter designed for the direct starting of polyphase squirrel cage motors, providing reliable motor control and overload protection in industrial applications.

$250.00
Tax excluded
Quantity
Last items in stock
1 Item

Ask about the product on WhatsApp
Make an Offer

Your Offer is sent.

Your Offer is accepted, please check your inbox.

  • Use dot instead of comma
  •     *Required Fields

Loading

  Security policy

We offer many payment options to make your purchasing experience secure, easy and flexible.

  Delivery policy

In-stock products: Same day shipping Mon. through Fri. by 6:00 pm EST.

  Return policy

90-days money back guarantee

Description

The 509-DOD starter is part of Allen-Bradley's Bulletin 509 series, engineered for full-voltage starting of three-phase squirrel cage motors. It features a 90-ampere, 3-pole configuration with a 115/120V AC coil operating at 60 Hz. The starter includes a eutectic alloy overload relay, offering dependable motor protection. Its open-type design facilitates straightforward installation and maintenance, making it suitable for various industrial environments. The 509-DOD complies with NEMA standards, ensuring compatibility and performance consistency across applications.

Features:

  • Configuration: Non-reversing, 3-pole starter.
  • Current Rating: 90 amperes.
  • Coil Voltage: 115/120V AC at 60 Hz.
  • Motor Compatibility: Supports 25 HP motors at 230V and 50 HP motors at 460/575V.
  • Overload Protection: Equipped with a eutectic alloy overload relay.
  • Design: Open type for easy installation and maintenance.
  • Standards Compliance: Meets NEMA Size 3 specifications.
Product Details
509-DOD
1 Item
New

Specific References

MPN
509-DOD
