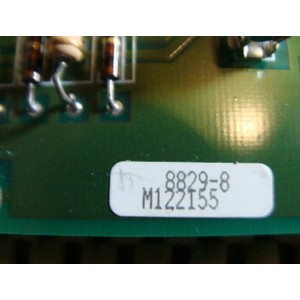

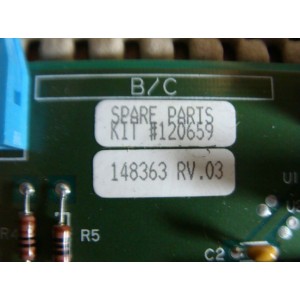

Allen-Bradley SP-120659 Main Control PCB Kit
The Allen-Bradley SP-120659 is a Main Control Printed Circuit Board (PCB) Kit designed for use with the Bulletin 1336 series adjustable frequency AC drives, providing essential control functionalities for motor operations.
Security policy
We offer many payment options to make your purchasing experience secure, easy and flexible.
Delivery policy
In-stock products: Same day shipping Mon. through Fri. by 6:00 pm EST.
Return policy
90-days money back guarantee
Description
This Main Control PCB Kit is compatible with Allen-Bradley's Bulletin 1336 adjustable frequency AC drives, which are utilized for precise motor control in industrial applications. The SP-120659 board supports drives with voltage ratings of 380 to 460V AC or 500 to 575V AC, and power ratings ranging from 3 to 200 horsepower. It operates within a frequency range of 48 to 62 Hz and is designed to function in environments with temperatures between 0 to 40°C (32 to 104°F) and relative humidity levels of 5 to 95% (non-condensing). The board weighs approximately 0.7 kg (1.5 lbs).
Features:
- Compatibility: Designed for Bulletin 1336 series adjustable frequency AC drives.
- Voltage Ratings: Supports 380 to 460V AC or 500 to 575V AC drives.
- Power Range: Suitable for drives rated between 3 to 200 HP.
- Frequency Range: Operates within 48 to 62 Hz.
- Environmental Conditions: Operational temperature range of 0 to 40°C (32 to 104°F); relative humidity of 5 to 95% (non-condensing).
- Dimensions: Standard PCB size compatible with 1336 series drives.
- Weight: Approximately 0.7 kg (1.5 lbs).
Product Details
SP-120659
1 Item
New
Specific References
- MPN
- SP-120659
The Allen-Bradley SP-120659 is a Main Control Printed Circuit Board (PCB) Kit designed for use with the Bulletin 1336 series adjustable frequency AC drives, providing essential control functionalities for motor operations.
